Light steel framing machine customized making kinds of metal keel sheets roll forming production line
1. Usage And Introduction Of This Production Line
This type of forming machine line includes various kinds of roof panel forming machines, wall panel forming machines, and lining plate forming machines , C Z purlin roll forming machines, guard rail roll forming machines, metal deck roll forming machines, guide rail roll forming machines etc. It has received 3 patents of utility model and is widely used in steel construction enclosure. We can provide roll forming equipment in various profile shapes and configurations to satisfy your specific requirements.
Here is the light steel roll forming machine for EURO customer, Omega profile stud roll forming machine.Stud and track products are widely used for ceiling and drywall. We are professioal supplier of keel roll forming machines, and we are good at making machines as customer’s drawing or sample.
| uncoiler | 1set |
| coil sheet guiding device | 1set |
| main roll forming system | 1set |
| punching device | 1set |
| cutting device | 1set |
| Hydraulic station | 1set |
| PLC control system | 1set |
| support table | 1set |
2. The roll forming machine parameters
| No. | Item | Specification |
| 1 | Can Formed Material | GI,AI |
| 2 | Equipment operation | Automatic |
| 3 | Voltage | 380V 60Hz 3Phase or as your requirement |
| 4 | Thickness of sheet (mm) | 0.3-0.7mm |
| 5 | Material width(mm) | As your requirement |
| 6 | Cover Width of the sheet after formed | as your drawing |
| 7 | The size of the roll forming machine | 5500mmx1200mmx1400mm |
| 8 | Speed | 12-15m/min |
| 9 | Diameter of shaft | 40mm |
| 10 | Weight of the Machine | 2200-2500KGS |
| 11 | Material of rollers | Cr12 steel quenched and chromed |
| 12 | Motor brand | Siemens or Guomao |
| 13 | PLC | Siemens or Delta or Mitsubushi |
| 14 | Total power (kw) | 8kw |
| 15 | Power of hydraulic system | 4kw |
| 16 | Power of main molding core | 4kw |
| 17 | Transmission | Chain with gears |
3. Who we are and what we do
BOTOU SHITONG MACHINERY MANUFACTURING CO.,LTD.(hereinafter referred to as SHITONG) is founded in 2001 and specialized in designing, manufacturing, installation, debugging kinds of Metal Panel Roll Forming Machines. SHITONG is a private enterprise with many years’ experience in this field. We have developed many new style Profile Forming Equipment, which enriches our products, makes our machinery more reasonable, artistic and practical. Therefore, we obtain the consistently high praise of new and regular customers.
4. Our service about the roll forming machine
(1) Once you paid the deposit, we will start the production as soon as possible. When the machine is finished, you can come to check the machine, we will arrange your accommodation and relative schedule. If you don't come, we can test the machine and send you test video. It's no problem.
(2) If the buyer need overseas debug, we can also send technician to your factory, the customer should undertake all related cost including the accommodation and round-trip ticket of technician: 100 USD/day . The buyer should make sure the safety of technician.

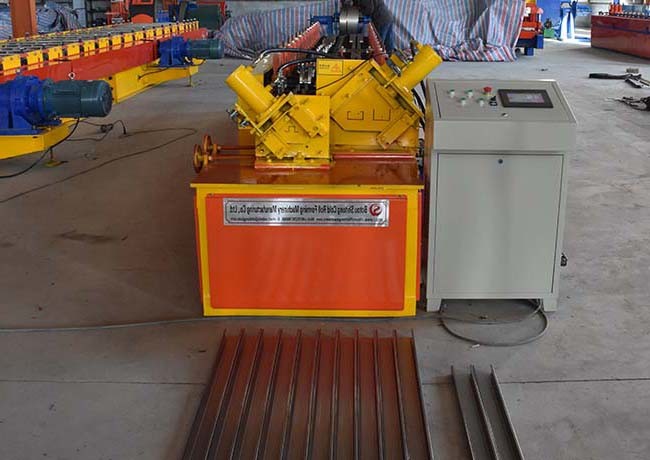

5. Roll forming machine pictures:
